Start here

The demo

The full demo is the grasspro.html meadow rebuilt on the library. It has rolling hills, trees, rocks, flowers, drifting leaves, fireflies at night and a ball that tramples the grass. It runs from the package with npm run dev, and in your browser right here.

The same build as `npm run build:demo`. Use W A S D to roll the ball, drag to orbit, and press 1–7 for the presets.

Everything scenic lives in demo/: the terrain function, the sky dome, the ball, the leaf and fluff drift, and the UI. The grass, wind, trampling, scatter and fireflies come from naturegl-grass.

#Controls

#Moving

Input	Action
`W` `A` `S` `D` / arrows	Roll the ball relative to the camera. It is a trampler, so it flattens the grass
`Shift` (held)	Run: 9 m/s instead of 4.5 m/s
Click the ground	Roll the ball to that point
Hover the ground	Brush the grass under the cursor (a one-frame `trample.stamp()` each frame)

#Camera and UI

Input	Action
Drag	Orbit around the ball
Scroll	Zoom, from 2.5 m to 45 m
`1` – `7`	Meadow, Golden Hour, Windy Hills, Wildflowers, Autumn, Dry Savanna, Night Fireflies
`H`	Hide the interface

#Panel

Control	What it does
Quality Low / Med / High / Ultra	`grass.setQualityLevel()`
Trample	`grass.trample.enabled`
Shadows	`sun.castShadow`. The grass receives the sun's shadow map only while it is on
Flowers, Trees	Scatter layer visibility
Fireflies	Firefly intensity follows the night factor while this is on
Orbit	`controls.autoRotate`
Path	Adds a winding footpath to the terrain `mask` and calls `grass.setTerrain()`
Copy preset JSON	Copies `grass.getParams()` plus the demo's `scatter` and `environment` sections to the clipboard, or prints it to the console

The sliders along the bottom are density, height, wind, gusts, wind direction, time of day, season, clumping, glow (translucency) and sheen (specular). Each one calls grass.setParams(). The parameters page has their ranges.

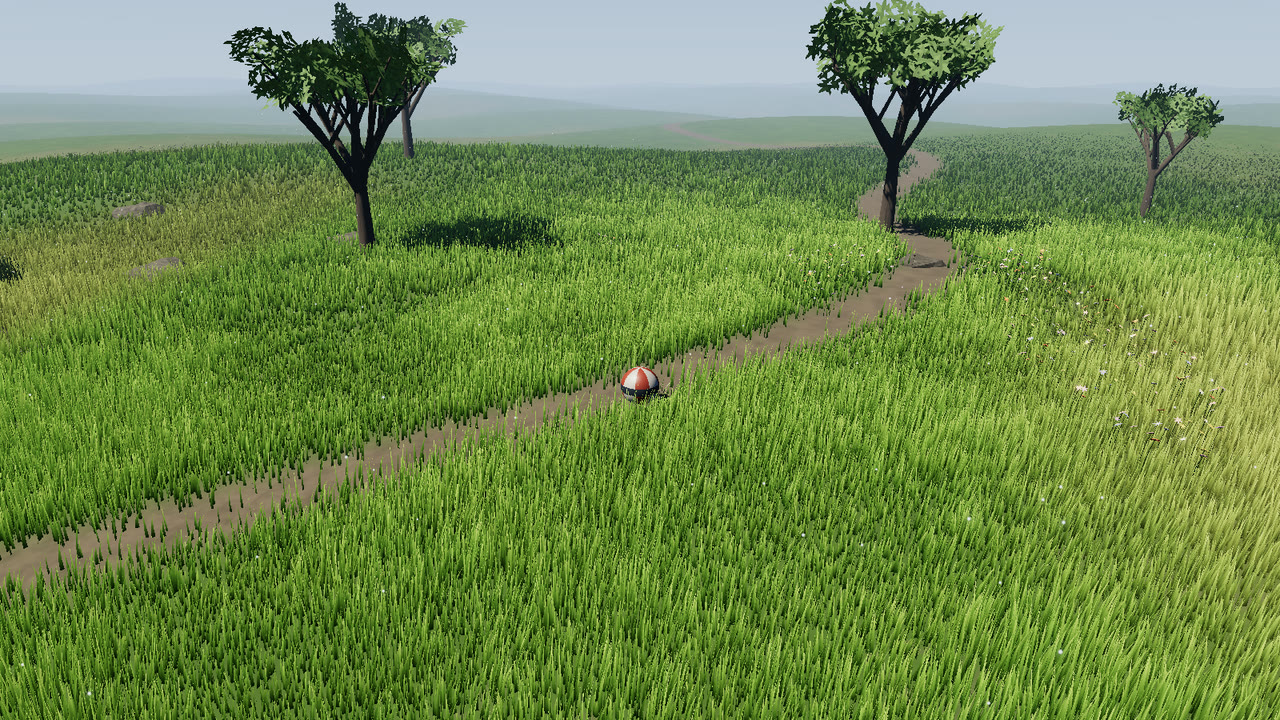

**Path** on: the footpath is only a mask value of 0 along a sine curve. The grass, the turf colour on the ground and the flowers all leave it bare.

#URL options

Query	Effect
`?quality=low\|medium\|high\|ultra`	Start at this tier and skip adaptive quality
`?smoke`	Turn adaptive quality off (the test and capture scripts use it)
`?gputime`	GPU frame timing through `EXT_disjoint_timer_query_webgl2`, averaged in `window.__gpu.ms`
`?noshadow`	Start with the renderer's shadow map off

Without ?quality or ?smoke, the demo starts at high and steps down one tier if the first seconds average under 45 fps.

#Automation contract

The demo exposes window.__pro, the same contract every NatureGL demo uses. npm test and this site's media capture drive the demo through it.

window.__pro = {
  ready: true,                  // after the first frames rendered
  system: grass,                // the GrassSystem
  scatter, fireflies,           // the ScatterSystem and Fireflies
  presets: ['meadow', 'golden', 'windy', 'wildflowers', 'autumn', 'savanna', 'night'],
  qualities: ['low', 'medium', 'high', 'ultra'],
  applyPreset(name) {},         // loads the preset and stages its environment + camera
  setQuality(level) {},
  // demo extras
  setToggle(name, on) {},       // 'trample', 'shadows', 'flowers', 'trees', 'fireflies', 'orbit', 'path'
  setSlider(name, value) {},    // 'density', 'height', 'wind', 'gust', 'dir', 'time', 'season', …
  player, camera, controls,
  getPresetJSON() {},
};
